- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Marketing Information
Introduction

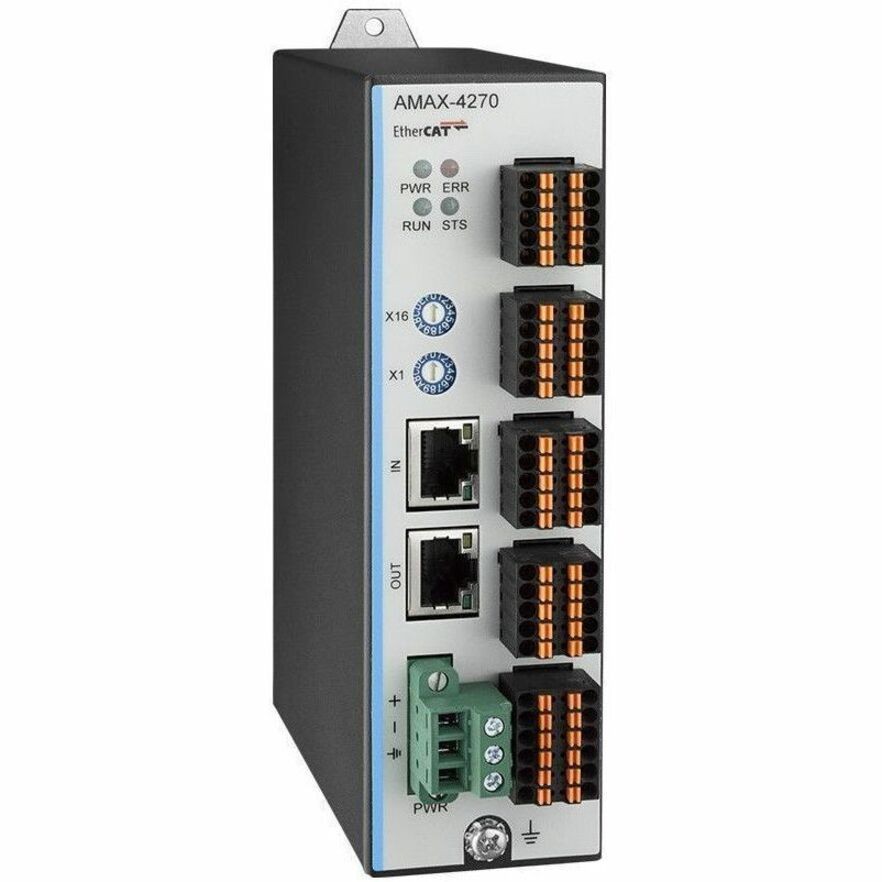

AMAX-4270 is the EtherCAT subDevice with 4-channel high speed trigger and latch function. It provides 32-bit 4-channel counter/encoder for incremental encoders, which supports
CW/CCW, Pulse/Direction and A/B mode. The trigger output supports sink, source and TTL type with 10kHz frequency, providing trigger delay time function for each trigger output
channel and 1D, 2D position compare. AMAX-4270 has 4-channel latch input with 10kHz for latching encoder value.
AMAX-4270 features high speed trigger and latch function that can help users to achieve the AOI, glue dispensing, measurement, and storage assembly applications.
- Product Type
- Expansion Module
- Technical Information
- Application/Usage
- Data Networking
- Interfaces/Ports
- Total Number of Ports
- 2
- Connector Type
- RJ-45
- Interfaces/Ports Details
- 2 x RJ-45 Ethernet LAN
- Media & Performance
- Media Type Supported
- Twisted Pair
- Physical Characteristics
- Height
- 5.9"
- Width
- 1.8"
- Depth
- 4.7"
- Miscellaneous
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
