- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Packaged Quantity
- 1
- Marketing Information

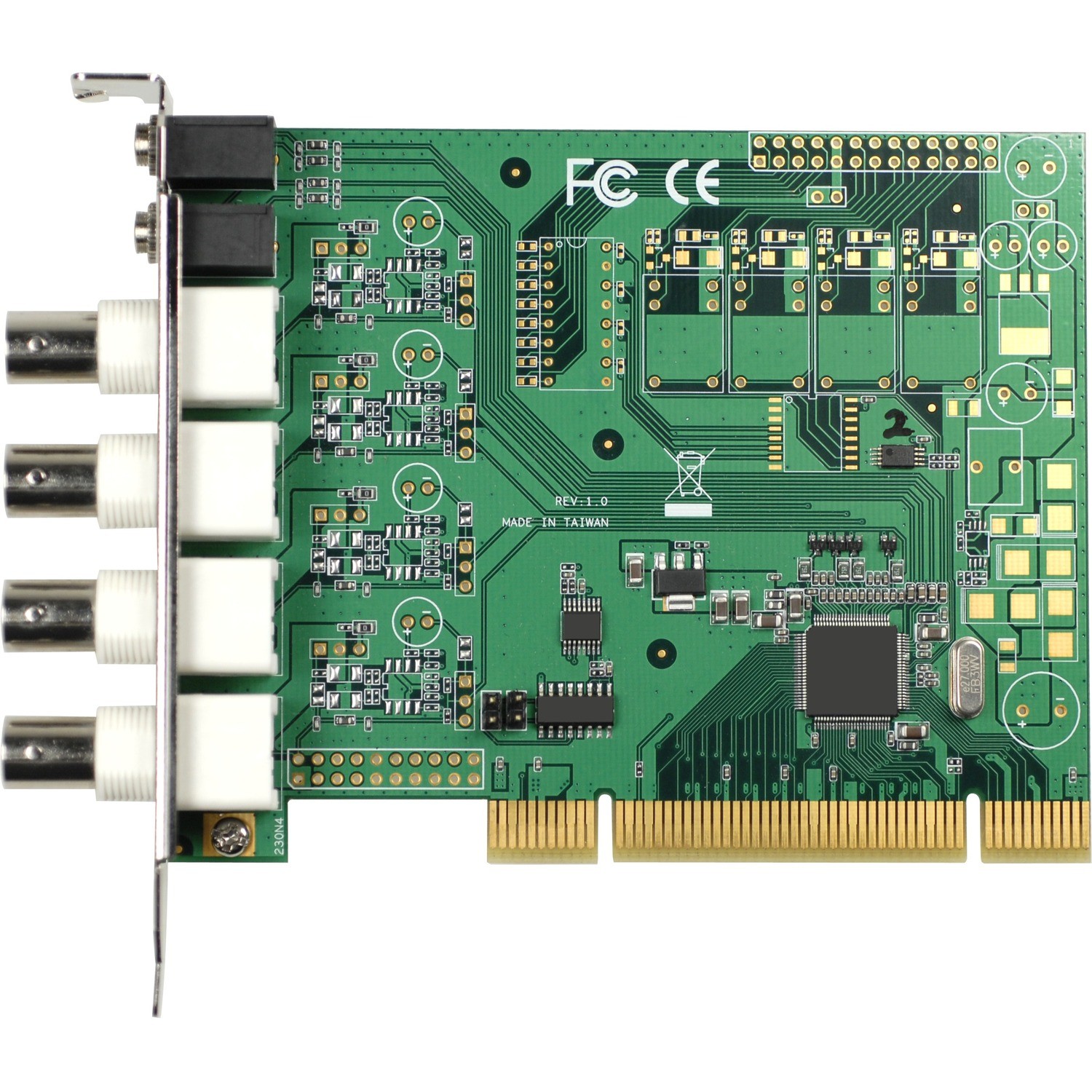

DVP-7030E is a PCI-bus, software compression video capture card with 4 analog video and 4 audio inputs. DVP-7030E supports H.264 / MPEG4 compression format at up to full D1 resolution at real-time frame rate (30/25fps) for each channel. With an easy-to-use software development kit (SDK) and flexibility to stack multiple cards, DVP-7030E is an ideal solution for various video capture applications or video surveillance.
- Product Type
- Video Capturing Device
- Technical Information
- Functions
- Video Capturing
- Video Signal Format
- NTSC
- PAL
- Video Formats
- H.264
- MPEG-4
- Platform Supported
- PC
- Linux
- Interfaces/Ports
- Host Interface
- PCI 3.0
- Physical Characteristics
- Form Factor
- Plug-in Card
- Height
- 3.8"
- Width
- 4.7"
- Miscellaneous
- Package Contents
- 4-ch H.264/MPEG-4 PCI Video Capture Card with SDK
- 2 x Audio Cable
- 1 x Watchdog Cable
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
