- General Information
- Manufacturer
- Axiom Memory Solutions
- Manufacturer Website Address
- http://www.axiommemory.com
- Brand Name
- Axiom
- Product Type
- XENPAK

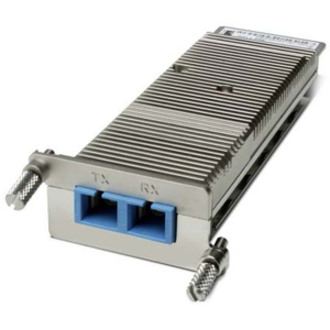

Axiom XENPAK Transceiver Modules are 100% compatible in all OEM applications. They are pre-configured with an application specific code to meet the requirement set forth by the router and switch OEMs. Axiom compatible transceivers perform, fit and function identically when compared to "Original" Transceivers. Axiom brand transceivers also function with other brands within the same network.
Original Equipment Manufacturer (OEM)® names may be registered trademarks of the respective OEM, and the OEM has neither authorized nor sponsored the use of its trademark or trade name. All OEM names are used for comparative purposes only.
- Technical Information
- Application/Usage
- Data Networking
- Interfaces/Ports
- Total Number of Ports
- 1
- Connector Type
- SC
- Interfaces/Ports Details
- 1 x SC Duplex 10GBase-LX4
- Media & Performance
- Media Type Supported
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Maximum Distance Supported
- 0.30 km
- Memory
- Memory Technology
- SDRAM
- Physical Characteristics
- Form Factor
- Hot-swappable
- Height
- 0.5"
- Width
- 1.4"
- Depth
- 4.8"
- Miscellaneous
- Additional Information
- The Cisco 10GBASE-LX4 Module supports link lengths of 300 meters on standard Fiber Distributed Data Interface (FDDI) grade multimode fiber (MMF).
- Minimum cabling distance for optical XENPAK module is two meters, according to the IEEE 802.3ae standard.
Optical Transmit and Receive Specifications:
- Transmit Power (dBm): 0.5 per lane (Maximum)
- Receive Power (dBm): 0.5 per lane(Maximum)
- Receive Power (dBm): -14.4 per lane(Minimum)
- Transmit and Receive Wavelength (nm): Four lanes; overall range: 1269 to 1356
- Compatibility
- MSA Compliant
- Catalyst 6500 Series (WS-X6704-10GE)
- Certifications & Standards
- IEEE 802.3ae
- Safety: Laser Class 1 21CFR-1040
