- General Information
- Manufacturer
- Axiom Memory Solutions
- Manufacturer Website Address
- http://www.axiommemory.com
- Brand Name
- Axiom
- Product Line
- Enterprise Pro
- Product Series
- EP650
- Product Type
- Solid State Drive
Axiom hot-swappable 24Gb/s SAS (Serial Attached SCSI) SSDs are tailored for enterprise storage performance. As a high-performance option with dual-port capability in the Axiom Enterprise SSD lineup, Axiom SAS drives deliver up to 4,200/1,200 Mb/s sequential read/write speeds and are designed to handle high-traffic usage with lower latency.
SAS SSDs outclass both HDDs and SATA (Serial ATA) SSDs in multiple facets such as performance, reliability and scalability. These advantages make them well-suited to handle the storage demands for common applications in data center or virtualization usage. Enterprises seeking to bolster storage performance should look to Axiom SAS drives to power their data centers.
- Full-duplex data transmission with dual-port design
- 24 Gb/s bandwidth and superior IOPS
- 960 GB to 7.68 TB storage capacities in a 3.5" form factor
- Higher MTBF and built-in advanced ECC
- Includes OEM drive caddies for easier installation
- Warranty
- Limited Warranty
- 5 Year
- Technical Information
- Storage Capacity
- 960 GB
- Drive Performance
- Random 4KB Read
- 600000IOPS
- Random 4KB Write
- 55000IOPS
- Endurance (DWPD)
- 1
- Endurance (TBW)
- 1752 TB
- Maximum Sequential Read
- 4.10 GB/s
- Maximum Sequential Write
- 1.17 GB/s
- Mean Time Between Failures (MTBF)
- 228.2 Year
- Interfaces/Ports
- Drive Interface
- SAS
- Drive Interface Standard
- 24Gb/s SAS
- Physical Characteristics
- Drive Type
- Internal
- Form Factor
- 2.5"
- Drive Carrier
- Yes
- Hot Swappable
- Yes
- Miscellaneous
- Package Contents

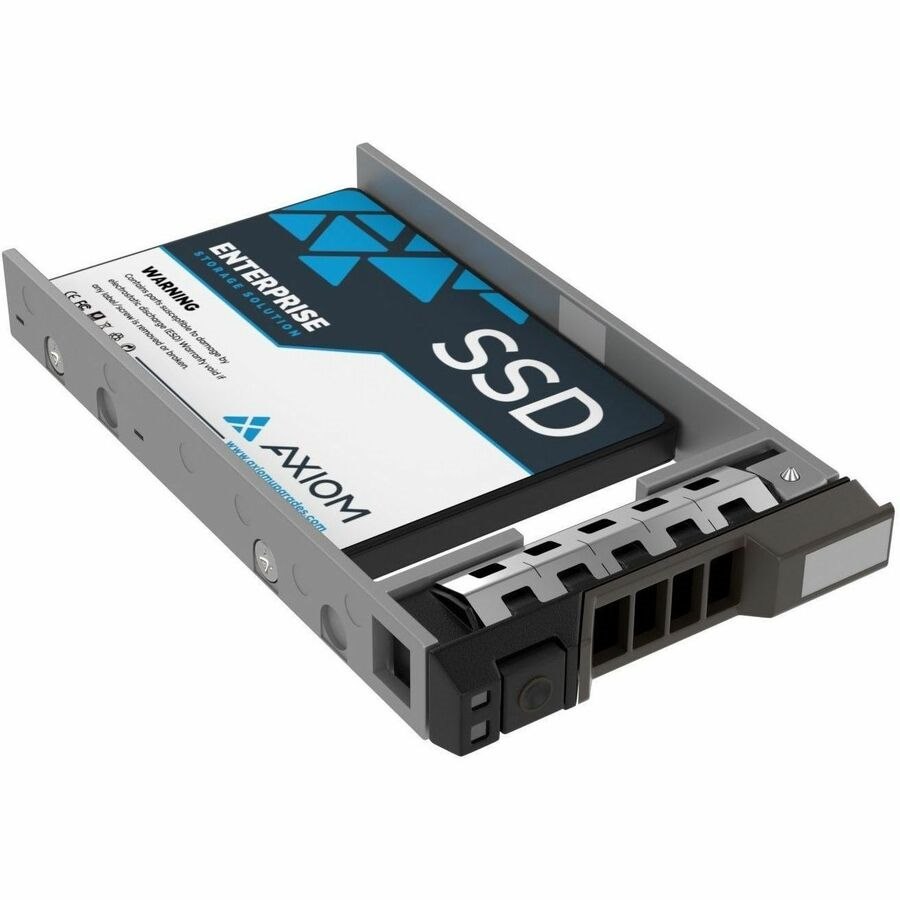

- 960GB Enterprise Pro EP650 2.5-inch Hot-Swap SAS SSD for Dell
- Drive Caddy
- Compatibility
Dell PowerEdge Products:
- FM120x4
- M600
- M610
- M710 / M710HD
- M905
- M910 (Xeon 7500/6500)
- M910 (Xeon E7-xxxx)
- R310 (Xeon L3406, Core i3, Pentium, Celeron)
- R310 (Xeon X3400 series, Xeon L3426)
- R320
- R330
- R410
- R415
- R420
- R430
- R510
- R515
- R520
- R610
- R620
- R630
- R710
- R715
- R720
- R720xd
- R730
- R810 (Xeon 7500/6500)
- R810 (Xeon E7)
- R815
- R820
- R830
- R910 (Xeon 7500/6500)
- R910 (Xeon E7)
- R920
- R930
- Precision Rack 7910 Workstation (R7910)
- Precision Workstation R5500
- Precision Workstation R7610
- Device Supported
- Data Center
- Workstation
- Server
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
