- General Information
- Manufacturer
- Honeywell International, Inc
- Manufacturer Website Address
- http://www.honeywell.com
- Brand Name
- Honeywell
- Product Line
- Granit Ultra
- Product Type
- Barcode Scanner Kit

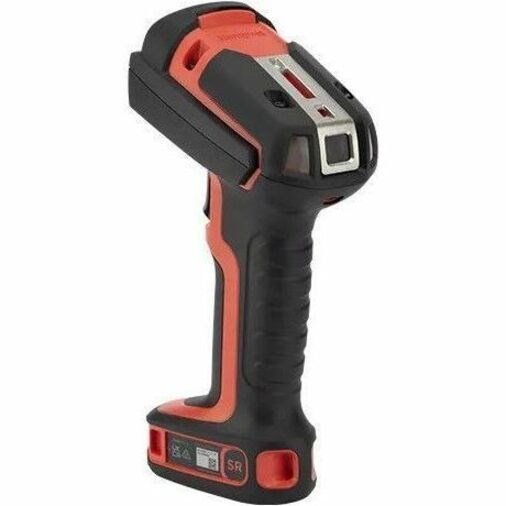

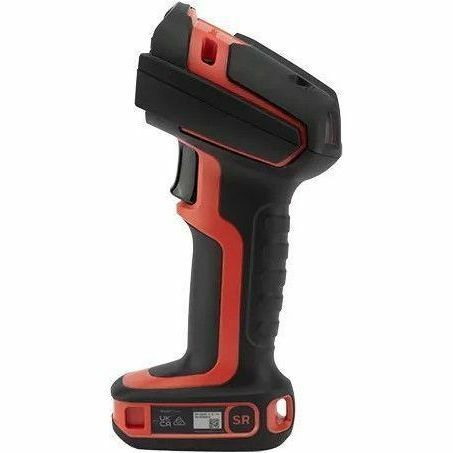

Ultra-Rugged Cordless Area-Imaging Scanner
Granit Ultra scanners expand capabilities and define the next generation of ultra-rugged scanning.
ULTRA SCAN PERFORMANCE
For a scanner to optimize productivity, it should read and transmit common barcodes nearly as fast as the user can pull the trigger, and Granit Ultra is engineered to do just that. Granit Ultra integrates high speed processing, AI(Artificial Intelligence) algorithms, and decoding enhancements to result in an average 45% scanning speed increase vs. Granit XP1, enabling improved productivity
ULTRA DURABILITY
In modern warehouse, distribution center, and manufacturing environments, any scanner must be durable enough to survive harsh operating conditions. Under exactly that kind of rough treatment, Granit is ready to deliver.
ULTRA EASE OF USE
Ready to operate right out of the box for many applications, Granit offers easy custom configuration in the time it takes to scan a barcode. For further workflow improvement, Granit can also read multiple codes in the field of view, organizing and outputting the data in a predefined order using Honeywell's Data Format Editor
The all new charge and communication base is loaded with features to simplify common tasks. Easy drop-in charging makes scanner placement in the cradle fast and efficient for flat work surfaces; engaging the latching mechanisms helps ensure secure retention for vertical or vehicle mounting.
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Cable/Wireless
- Scanning Capability
- 1D
- 2D
- Barcode Symbology Supported
1D:
- Code 39, code 128, code 93, code 11, code 32 Pharmaceutical, codabar, EAN, UPC, China Post, GS1 databar
2D:
- Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode
Digital Watermarking:
- Digimarc
OCR:
- OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 point OCR typeface
- Light Source
- Laser
- Image Sensor Type
- Imager
- Scan Mode
- Trigger
- Scan Pattern
- Area
- Scanner Range
- Ultra Long Range
- Scanning Distance
- 98.43 ft
- Features
- Notification LED
- Beep
- Vibration
- Ergonomic Design
- Data Formatter
- Cable Type Included
- Serial
- Field of View (Horizontal)
- 45°
- Field of View (Vertical)
- 14°
- Reading Angle (Skew)
- 65°
- Reading Angle (Pitch)
- 65°
- Reading Angle (Roll)
- 360°
- Maximum Ambient Light
- 100000 lux
- Drop Specification
- 3m (10 ft): MIL-STD-810G, 25° C (77° F), 55% relative humidity
- 2.5m (8.2 ft): 20 drops from -20° C to 50° C (4° F to 122° F), 55% relative humidity
- 2m (6.5 ft): 50 drops from -30° C to 50° C (-22° F to 122° F), uncontrolled relative humidity
- Minimum Print Contrast
- 15%
- Minimum Element Resolution (Code 39)
- 5 mil
- Maximum Element Resolution (Code 39)
- 100 mil
- Minimum Element Resolution (DataMatrix)
- 10 mil
- Maximum Element Resolution (DataMatrix)
- 100 mil
- Image Sensor Resolution
- 1900 x 800
- Illumination Type
- LED
- Illumination Color
- Green
- Air Electrostatic Discharge (+/-)
- 20kV
- Contact Electrostatic Discharge (+/-)
- 8kV
- AI-powered
- Yes
- Network & Communication
- Bluetooth
- Yes
- Radio Frequency
- Yes
- Interfaces/Ports
- Host Interface
- USB
- Serial
- Keyboard Wedge
- Power Description
- Maximum Operating Power Consumption
- 7.50 W
- Standby Current
- 120 mA
- Battery Information
- Battery Included
- Yes
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Capacity
- 3300 mAh
- Maximum Battery Run Time
- 14 Hour
- Environmental Conditions
- Operating Temperature
- -4°F (-20°C) to 122°F (50°C)
- Storage Temperature
- -40°F (-40°C) to 158°F (70°C)
- Humidity (Non-condensing)
- 95%
- Physical Characteristics
- Form Factor
- Handheld
- Rugged
- Yes
- Color Family
- Red
- Product Color
- Red
- Durability
- Drop Resistant
- Height
- 5.5"
- Width
- 3"
- Length
- 7.7"
- Weight (Approximate)
- 14.99 oz
- Miscellaneous
- Package Contents
- GRANIT ULTRA 2105iXLR Barcode Scanner
- Battery (Battery-SCN11)
- RS232 Cable (CBL-020-300-C00)
- Horizontal Base(CCB23-100BT-07N)
- Ingress Protection (IP) Rating
- IP65
- IP68
- Application/Usage
- Warehouse
- Distribution
- Manufacturing
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
