- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Line
- DigiTOOLS
- Product Type
- Signal Extractor

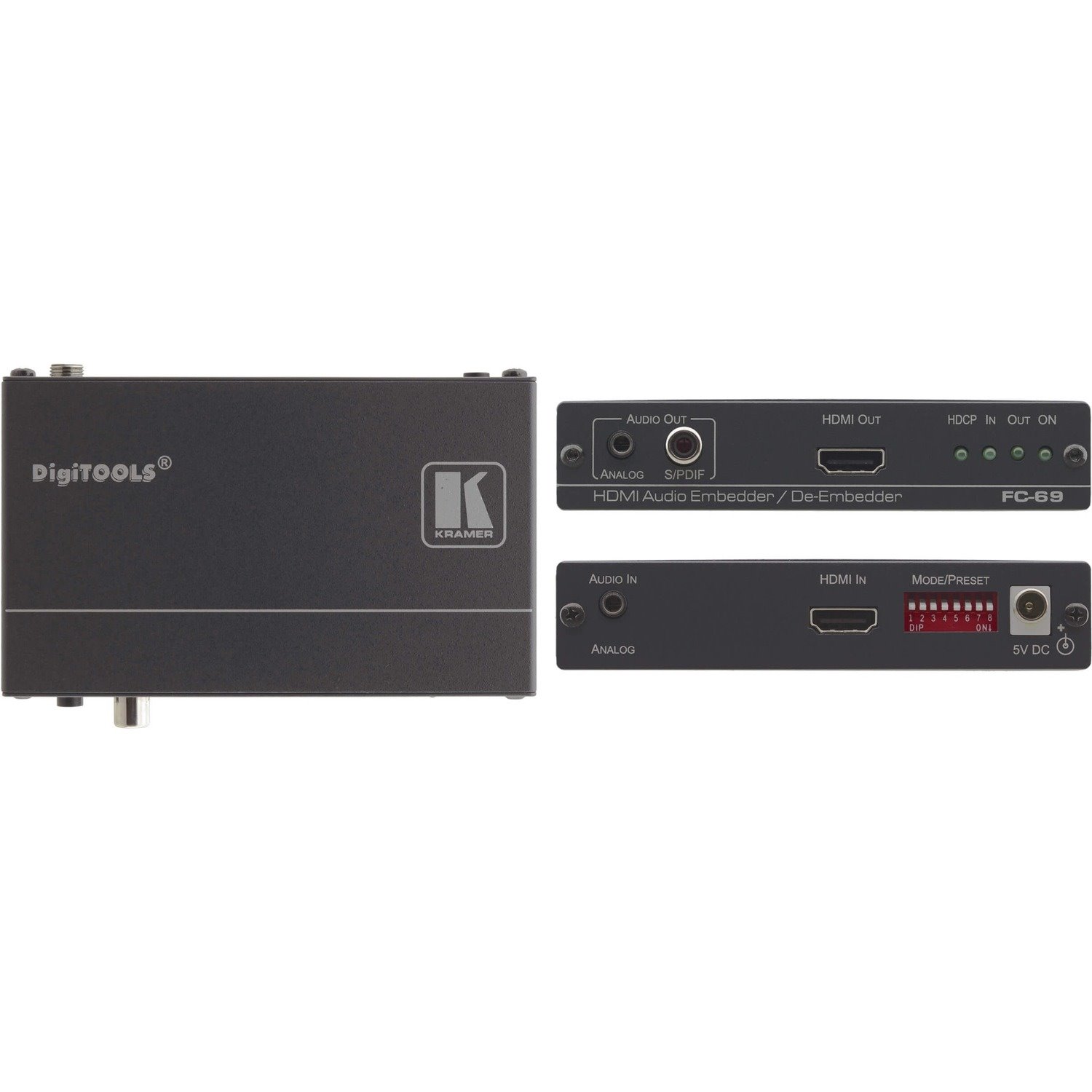

FC-69 is a high-performance 4K@60Hz (4:2:0), 4Kx2K HDMI audio embedder and de-embedder. The unit can embed analog audio to the HDMI output or de-embed audio from the HDMI input or from the HDMI output Audio Return Channel to S/PDIF and unbalanced stereo audio outputs simultaneously.
- Max. Resolution - 4K@60Hz (4:2:0), 4Kx2K.
- Max. Data Rate - 8.91Gbps (2.97Gbps per data channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support - ARC, 7.1 PCM, deep color.
- Audio Embedding - Even without an HDMI source.
- Audio de-Embedding - To unbalanced analog and S/PDIF, selectable from input or ARC.
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
- Sleep Mode - 5V on the output, following the input, allows the display to turn off when no video is being sent.
- Preconfigured Control Options - DIP-switches control locking/modifying EDID, HDCP, embedding/de-embedding and sleep mode functionality.
APPLICATIONS
- Home theater, presentation and multimedia applications
- Rental and staging
- Education and corporate
- Warranty
- Limited Warranty
- 7 Year
- Technical Information
- Functions
- Audio Embedding
- Audio De-embedding
- Interfaces/Ports
- HDMI
- Yes
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Physical Characteristics
- Form Factor
- Rack-mountable
- Desk Mountable
- Height
- 1"
- Width
- 4.7"
- Depth
- 2.8"
- Weight (Approximate)
- 0.44 lb
- Miscellaneous
- Environmentally Friendly
- Yes
