- General Information
- Manufacturer
- Kramer Electronics LTD
- Manufacturer Website Address
- http://www.kramerelectronics.com
- Brand Name
- Kramer
- Product Line
- KDock-6
- Product Type
- Docking Station

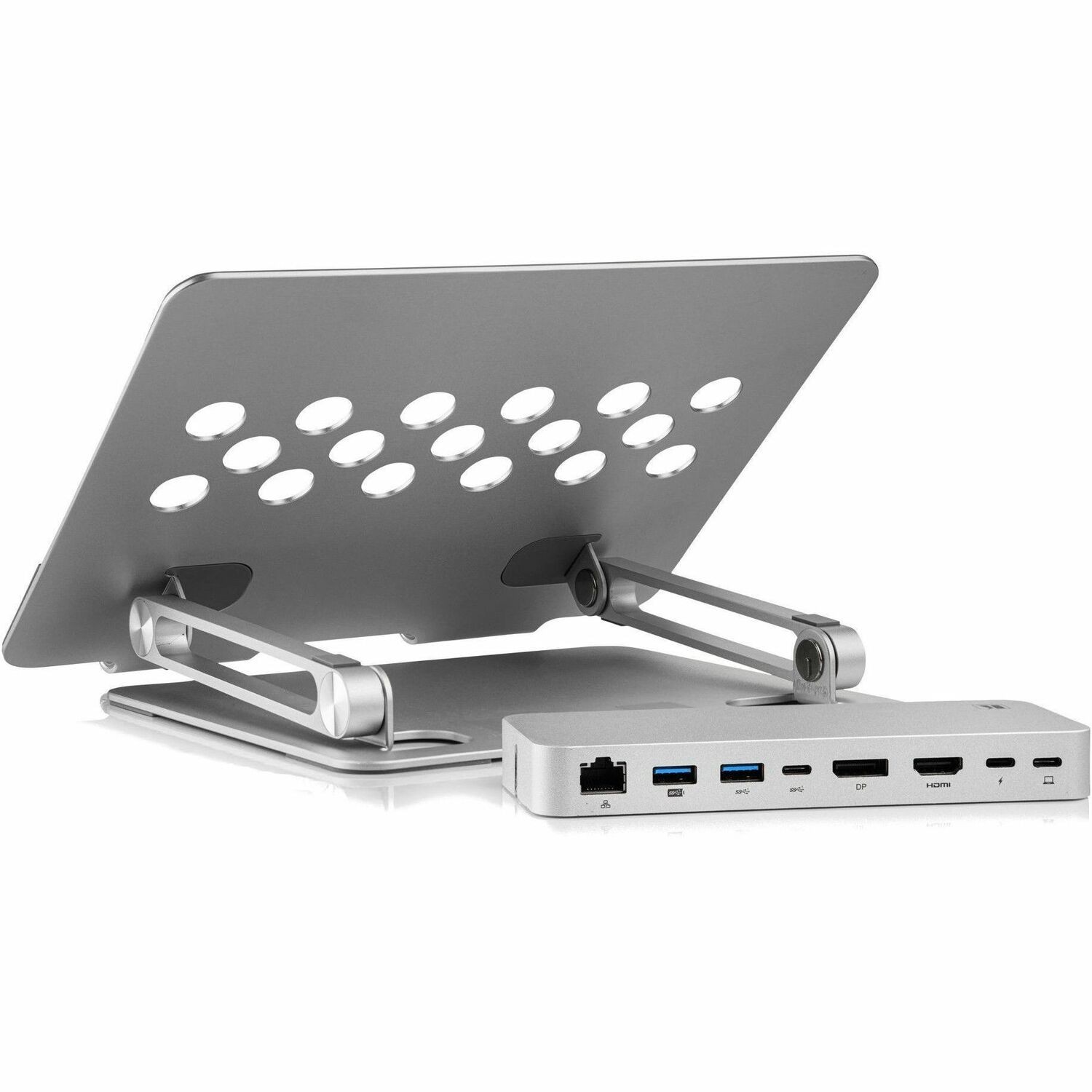

KDock-6 is a USB-C hub multiport adapter and ergonomic laptop stand. It has adjustable height and positioning and is an ideal accessory for MacBooks, laptops equipped with USB Type-C and tablets. KDock-6 can connect your USB-C device to HDMI™, DisplayPort video outputs, 3 USB 3.0 ports, an Ethernet port, an audio and microphone port, and USB-C charging pass-through port. The bracket and dock are affixed with magnetic suctions and buckles. Users can choose to use them separately or together according to their needs. The laptop holder contains holes for heat dissipation and rubber sheets for easier gripping
- Technical Information
- Connectivity Technology
- Wired
- Charging Capability
- Yes
- Device Supported
- Headphone
- Router
- Hard Drive
- Keyboard
- Notebook
- Mouse
- Smartphone
- Charger
- Monitor
- Microphone
- Features
- Power Delivery Pass-through
- Adjustable Height
- Management Features
- Wake-on-LAN
- PXE Boot
- MAC Address Pass-through
- Number of Displays Supported
- 2
- Screen Mode Supported
- 4K @ 60Hz
- Supported Resolutions
- 3840 x 2160
- Maximum Data Transfer Rate
- 640 MB/s
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- USB Type C
- Total Number of USB Ports
- 5
- Number of USB 3.0 Ports
- 3
- USB Type-A
- Yes
- Number of USB Type-A Ports
- 2
- USB Type-C
- Yes
- USB Type-C Detail
- 1 x USB: On a USB Type-C female connector, 1 x USB: On a female USB type-C connector for charging (100W max), 1 x USB: On a female USB type-C connector for host connection
- Number of USB Type-C Ports
- 3
- Network (RJ-45)
- Yes
- Number of RJ-45 Ports
- 1
- Number of Network (RJ-45) Ports
- 1
- DisplayPort
- Yes
- Number of DisplayPort Outputs
- 1
- Headphone/Microphone Combo Port
- Yes
- HDMI
- Yes
- Number of HDMI Outputs
- 1
- USB Power Delivery
- 100W
- Software
- Operating System Supported
- macOS
- Windows
- Physical Characteristics
- Form Factor
- Portable
- Height
- 1.38"
- Width
- 10.83"
- Depth
- 9.84"
- Weight (Approximate)
- 2.43 lb
- Miscellaneous
- Compatibility
Apple MacBooks
- Brand Compatibility
- Apple
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
