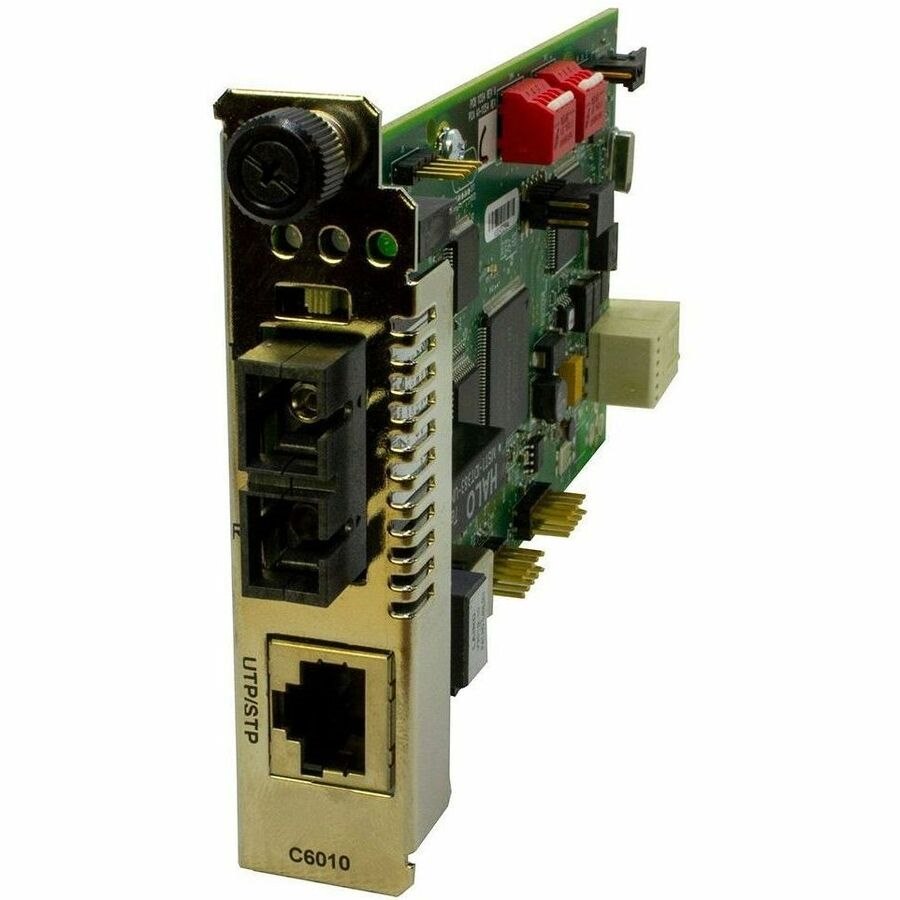

The ION C6010 is a managed media converter that offers a solution for extending T1/E1 or PRI connections over fiber optic cabling. It provides fiber extension though a twisted pair RJ-48 port and a fiber port. These T1/E1 converters must be used in pairs, one on each end of the fiber link. Typical installations include a chassis card installed in a centrally located managed ION chassis, linked over fiber to a S6010 stand-alone converter at the remote location. The T1/E1 converters are available with fixed fiber connectors or an open SFP slot, with support for various fiber types, distances, and wavelengths to provide maximum flexibility for any network topology. CWDM SFPs can also be used to further increase the bandwidth capacity of the fiber infrastructure.
- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Transition Networks
- Product Line
- ION
- Product Series
- C6010
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Number of SC Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1300 nm
- Maximum Distance Supported
- 2 km
- Network & Communication
- Network Technology
- T1/E1
- Power Description
- Power Consumption
- 2.60 W
- Physical Characteristics
- Height
- 3.4"
- Width
- 0.9"
- Depth
- 6.5"
- Weight (Approximate)
- 1 lb
- Miscellaneous
- Certifications & Standards
Standards:
- ANSI T1.102
- T1.402
- T1.408
- ITU I.431
- G.703
- G.736
- G.775
- G.823
- ETSI 300-166
- ETSI 300-233
- TBR12/12
Certifications:
- EN55035/55032 Class A
- FCC Class A
- CE
- UKCA
- TAA Compliant
- Yes
