- General Information
- Manufacturer
- Lantronix, Inc
- Manufacturer Website Address
- http://www.lantronix.com
- Brand Name
- Transition Networks
- Product Series
- M/E-TX
- Product Type
- Transceiver/Media Converter

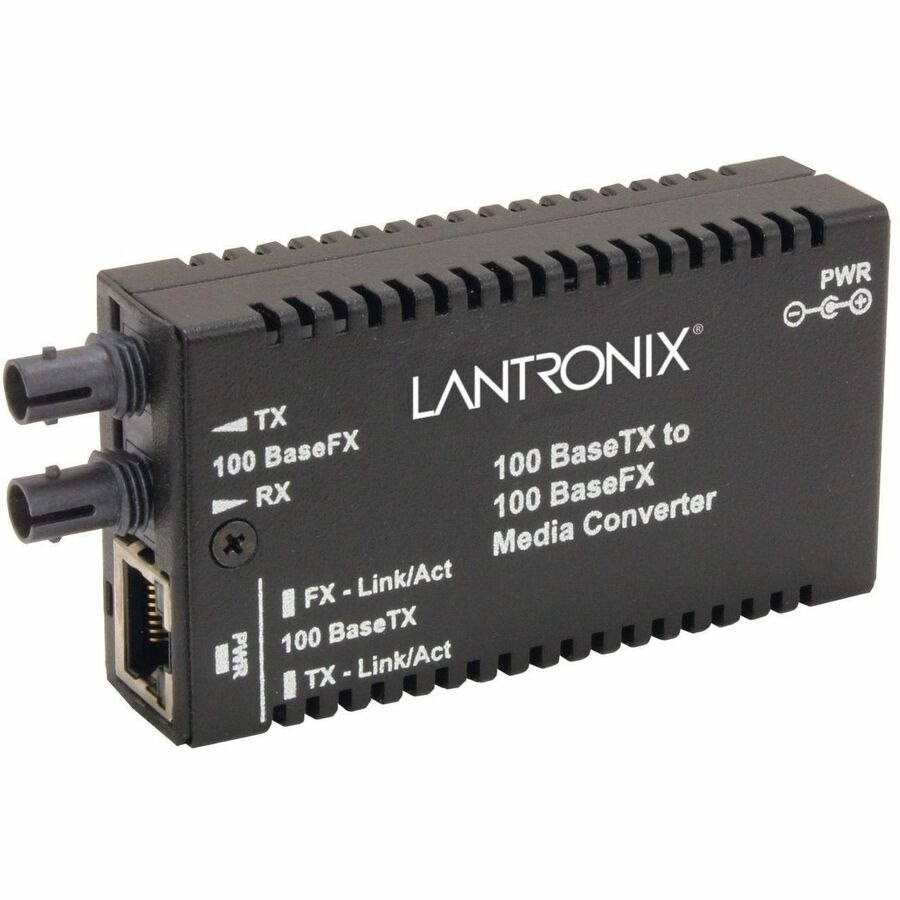

Mini Fast Ethernet Media Converter
100Base-TX to 100Base-FX
The M/E-TX Series is a Fast Ethernet stand-alone Mini media converter that provides cost effective media conversion between 100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of ST Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported
- Multi-mode
- Fiber Optic Cable Wavelength
- 1300 nm
- Maximum Data Transfer Rate
- 100 Mbit/s
- Maximum Distance Supported
- 2 km
- Network & Communication
- Ethernet Technology
- Fast Ethernet
- Network Technology
- 100Base-FX
- 100Base-TX
- Power Description
- Power Source
- AC/DC
- Input Voltage
- 12 V DC
- Power Consumption
- 2.60 W
- Physical Characteristics
- Form Factor
- Wall Mountable
- DIN Rail Mountable
- Rack-mountable
- Standalone
- Height
- 0.9"
- Width
- 1.8"
- Depth
- 3.3"
- Weight (Approximate)
- 2 lb
- Miscellaneous
- Package Contents
- M/E-TX-FX-01 Transceiver/Media Converter
- Power Supply - South Africa
- Application/Usage
- Data
- Network
- Additional Information
- 100Base-TX (RJ-45) [100m/328 ft.] to 100Base-FX 1300nm multimode (ST)[2km/1.2mi.] Link Budget: 11.0db
- Certifications & Standards
- Wall Mount Power Supply, UL Listed, cUL Listed (Canada)
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
