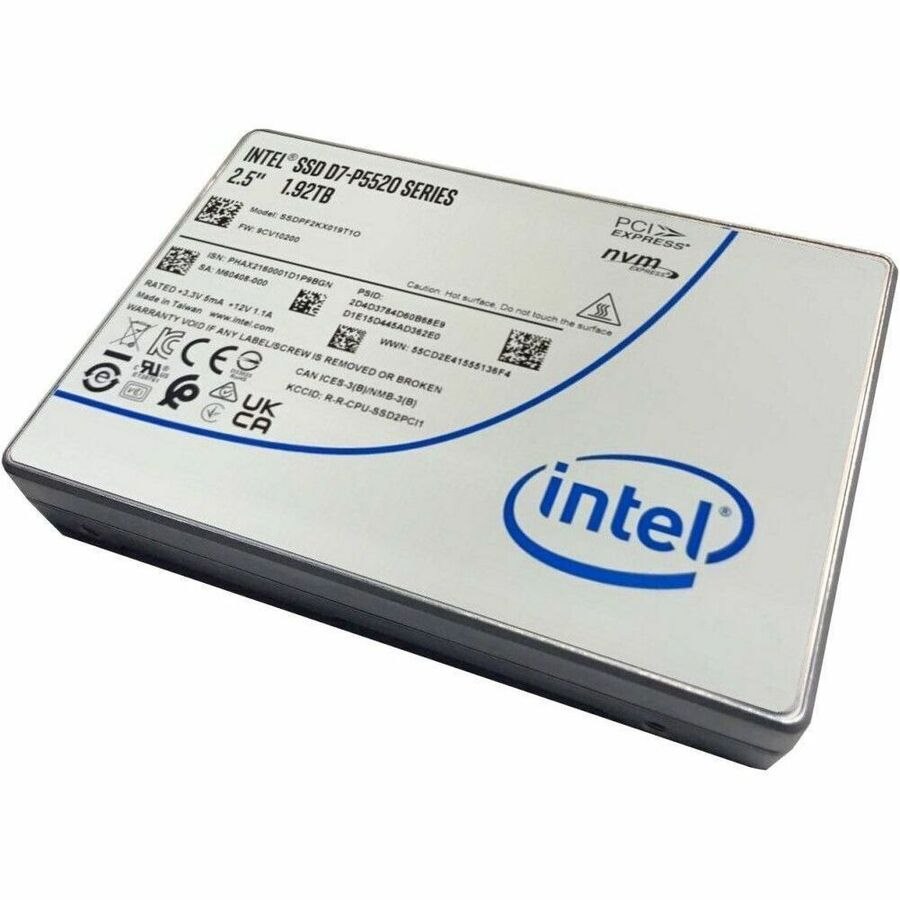

The ThinkSystem P5520 Read Intensive NVMe SSDs are general-purpose yet high-performance drives with a PCIe 4.0 x4 interface. They are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the P5520 SSDs and consider their use in IT solutions.
- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Series
- P5520
- Product Type
- Solid State Drive
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Storage Capacity
- 1.92 TB
- Drive Performance
- Maximum Read Transfer Rate
- 5.30 MB/s
- Maximum Write Transfer Rate
- 1.90 MB/s
- Random 4KB Read
- 700000IOPS
- Random 4KB Write
- 114000IOPS
- Endurance (DWPD)
- 1
- Endurance (TBW)
- 3584 TB
- Endurance Type
- Read Intensive
- Network & Communication
- Wireless LAN
- No
- Interfaces/Ports
- Drive Interface
- U.2
- Drive Interface Standard
- PCI Express NVMe 4.0 x4
- Physical Characteristics
- Form Factor
- 3.5"
- Height
- 0.6"
- Width
- 2.8"
- Depth
- 3.9"
- Weight (Approximate)
- 5.15 oz
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
