- General Information
- Manufacturer
- Lind Electronic Design
- Manufacturer Website Address
- http://www.lindelectronics.com
- Brand Name
- Lind Electronics
- Product Type
- Auto Adapter
PA1630-866 DC Power Adapter for Notebooks adjusts the output voltage to the correct operating voltage. It is housed in indestructible extruded aluminum case & sealed for durability.
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Device Supported
- Notebook
- Power Description
- Input Voltage Range
- 11 V DC - 16 V DC
- Output Voltage
- 15.6 V DC
- Maximum Output Power
- 48 W
- Maximum Output Current
- 4 A
- Physical Characteristics
- Height
- 1.3"
- Width
- 5"
- Depth
- 2.4"
- Weight (Approximate)
- 12 oz
- Miscellaneous

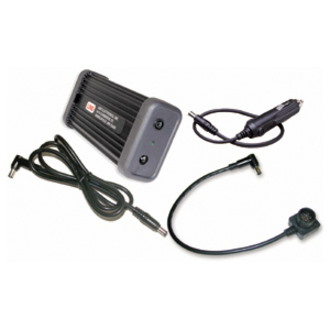

- Package Contents
- PA1630-866 Auto Adapter for Notebooks
- Cigarette Lighter Input Cable: 36 Inches CBLAU-F00218D
- BA5590 Input Cable: 8 Inches CBLBA-00101
- Adapter to Laptop Cable: 36 Inches CBLOP-F00691
- Additional Information
Protection:
- Fuse: 10 amps
- Output short circuit protection
- Under voltage & over voltage protection
- Internal temperature limit cut-off circuitry
- Compatibility
- Military Battery Model: BA5590
Panasonic Toughbook Series Notebooks:
- CF18
- CF19
- CF29
- CF30
- R1
- R4
- R5
- T1
- T2
- T4
- T5
- W2
- W4
- W5
- Y2
- Y4
- Y5
