Rack Solutions Mounting Bracket for Server, Hard Drive, Rack, Cabinet, Rack Rail - Black

  • Part: 2260322
$416.00

Availability

Out of Stock

Designed With PCI Compliance Standards in Mind

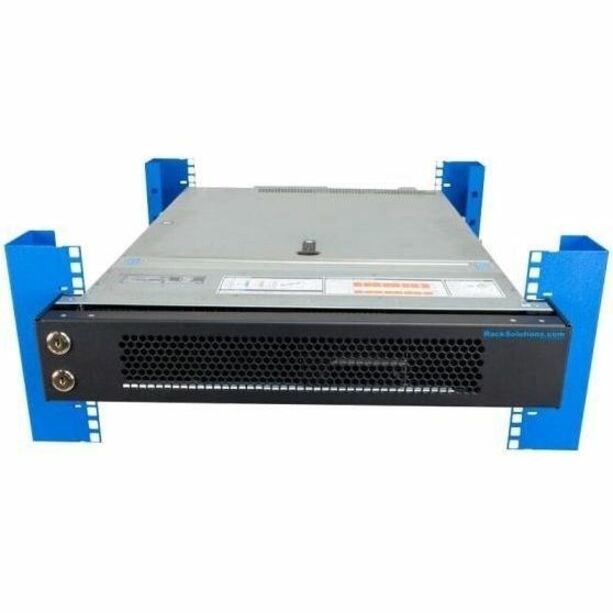

RackSolutions' PCI DSS Dual Lock Secure Server Bracket provides an additional layer of security for individual rack-mounted servers containing sensitive data, such as customer credit card information. The bracket secures the server in place using 2 different locks, requiring different keys. This system is especially effective when 2 different staff members keep keys, so if one is compromised, the server remains secure and PCI DSS Compliant. The bracket is compatible with server chassis with rail kits up to 2U. To assist with compatibility, the bracket and mounting ears are adjustable to fit servers, rail kits, and server racks of varying sizes and depths.

Step 1: Mount the Locking Brackets

First, install the left and right Locking Brackets. These Locking Brackets take up 2 U-spaces and the Server Attachment Brackets connect to them. The Server Attachment Brackets replace the square mounting holes used by the Locking Brackets.

Step 2: Adjust the Server Attachment Bracket

Afterward, you will be able to adjust to the appropriate depth by moving the Server Attachment Brackets. The correct depth will depend on the Server Ear Thickness.

Step 3: Install Server and Secure Server Assembly

Installing the rail kit and server works as usual, but instead of using a rack, you use the Server Attachment Brackets. Finally, attach the Secure Server Assembly bracket to the Locking Brackets and lock it into place using the provided keys.


  • General Information
    • Manufacturer
    • Rack Solutions
    • Manufacturer Website Address
    • http://www.racksolutions.com
    • Brand Name
    • Rack Solutions
    • Product Type
    • Mounting Bracket

  • Product Information
    • Device Supported
    • Server
    • Hard Drive
    • Rack
    • Cabinet
    • Rack Rail
    • Features
    • Adjustable
    • Lockable
    • Mount Pattern
    • Universal
    • Rack Height
    • 1U/2U
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Finishing
    • Powder Coated
    • Form Factor
    • Rail Mountable
    • Rack-mountable
    • Height
    • 4.12" (104.65 mm)
    • Width
    • 22.65" (575.31 mm)
    • Depth
    • 4.12" (104.65 mm)
    • Weight (Approximate)
    • 3.98 lb (1805.30 g)
  • Miscellaneous
    • Package Contents
      • 1x Secure Server Assembly
      • 2x Server Attachment Brackets
      • 1x Locking Bracket (Left)
      • 1x Locking Bracket (Right)
      • 8x 12-24 x .500 Pan Head Screw
      • 8x 12-24 Cage Nut
      • 4x 8-32 x .250 Countersink Screw
      • 9x 10-32 x .500 Pan Head Screw
      • 9x 10-32 Cage Nut


    • Country of Origin
    • United States
    • TAA Compliant
    • Yes
    • UL Listed
    • No
    • Environmental Compliance
    • Restriction of Hazardous Substances (RoHS)
