- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDS-3112
- Marketing Information
Introduction

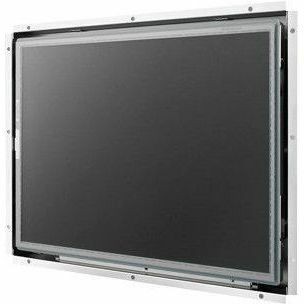

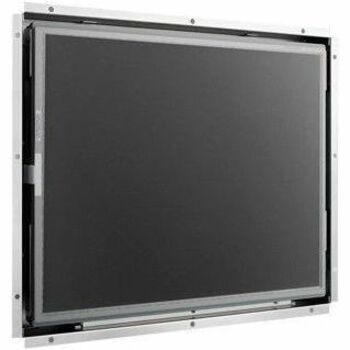

The Advantech IDS-3112 Embedded Open Frame Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series supports rear and VESA mounting. The integrated brackets provide the benefits of easy installation, and flexibility for different applications.
- Product Type
- Open-frame LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 12"
- Viewable Screen Size
- 12.1"
- Screen Mode
- SVGA
- Response Time
- 35 ms
- Horizontal Viewing Angle
- 160°
- Vertical Viewing Angle
- 140°
- Mount Type
- Rear Mount
- Backlight Technology
- LED
- Features
- Anti-reflective
- On-screen Display (OSD)
- Glass Hardness
- 3H
- Video
- Maximum Resolution
- 800 x 600
- Color Supported
- 16.2 Million Colors
- Native Contrast Ratio
- 700:1
- Brightness
- 450 Nit
- Touchscreen Information
- Touchscreen Type
- 5-wire Resistive

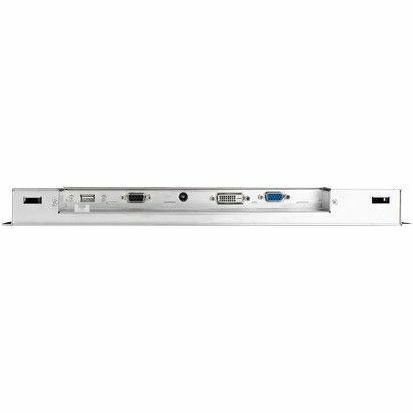

- Interfaces/Ports
- DVI
- Yes
- USB
- Yes
- VGA
- Yes
- Number of USB Ports
- 1
- Number of VGA Ports
- 1
- Environmental Conditions
- Operating Temperature Range
- 32°F (0°C) to 113°F (45°C)
- Physical Characteristics
- VESA Mount Compatible
- Yes
- Height
- 9.9"
- Width
- 12.6"
- Depth
- 1.3"
- Weight (Approximate)
- 4.81 lb
