- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IDS-3112ER
- Marketing Information

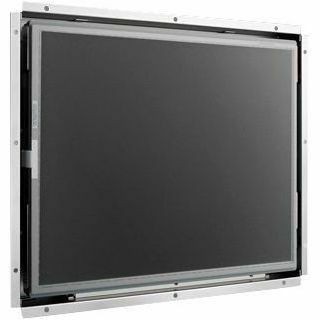

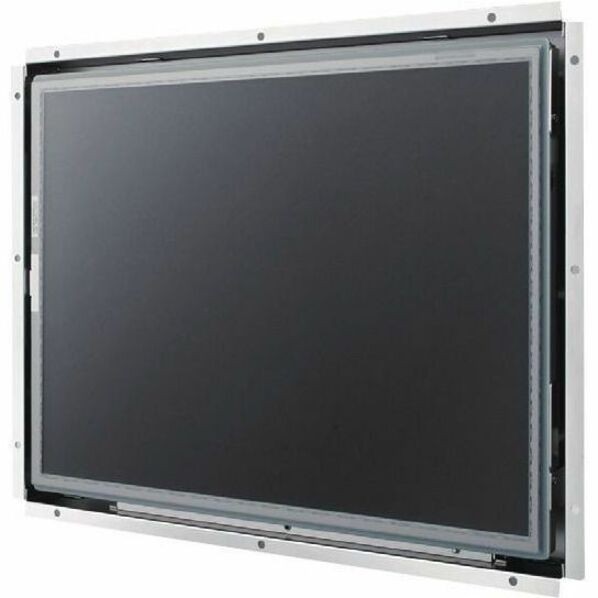

The Advantech IDS-3112 Open Frame Monitor Series offer ultra slim design supporting a 12.1" 1024 x 768 and 800 x 600 pixels TFT LCD screen, with -20 ~ 60° C wide operating temperature, and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
- Packaged Quantity
- 1
- Product Type
- Open-frame LED Touchscreen Monitor
- Technical Information
- Screen Size Class
- 12"
- Viewable Screen Size
- 12.1"
- Screen Mode
- SVGA
- Panel Technology
- Thin Film Transistor (TFT)
- Response Time
- 35 ms
- Horizontal Viewing Angle
- 160°
- Vertical Viewing Angle
- 140°

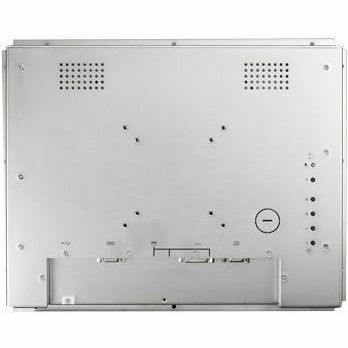

- Mount Type
- Rear Mount
- Backlight Technology
- LED
- Features
- On-screen Display (OSD)
- Ultra Slim
- Glass Hardness
- 3H
- Video
- Maximum Resolution
- 800 x 600
- Color Supported
- 16.2 Million Colors
- Native Contrast Ratio
- 700:1
- Brightness
- 450 Nit
- Touchscreen Information
- Touchscreen Type
- 5-wire Resistive

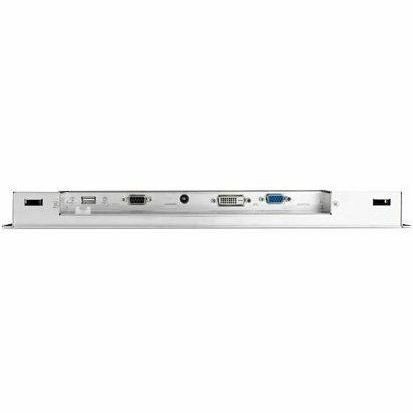

- Interfaces/Ports
- DVI
- Yes
- USB
- Yes
- VGA
- Yes
- Number of USB Ports
- 1
- Number of DVI Ports
- 1
- Number of VGA Ports
- 1
- Environmental Conditions
- Operating Temperature Range
- 32°F (0°C) to 113°F (45°C)
- Operating Humidity Range
- 5% to 95% (Non-condensing)
- Physical Characteristics
- VESA Mount Compatible
- Yes
- Height
- 9.9"
- Width
- 12.6"
- Depth
- 1.3"
- Weight (Approximate)
- 4.81 lb
- Miscellaneous
- Package Contents
- 12" SVGA / XGA Industrial Open Frame Monitor
- 1 x M Cable USB-A(M)/USB-A(M) 180CM
- 1 x VGA Cable 15P(M) 180 cm
- 4 x Clamper
- 4 x Screw of Clamper M4_25L
- 1 x Cable Clamp
- 1 x Screw of Cable Clamp
- 1 x Cable tie
- Environmentally Friendly
- Yes
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
